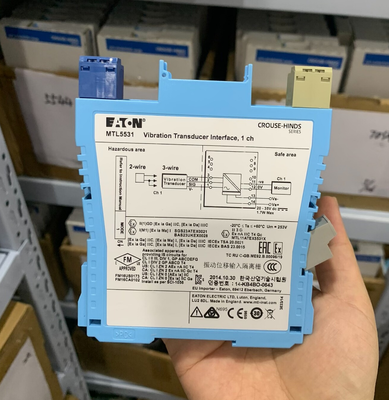

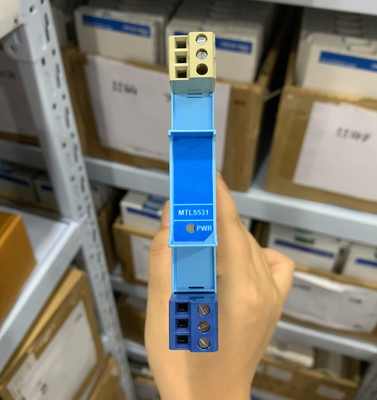

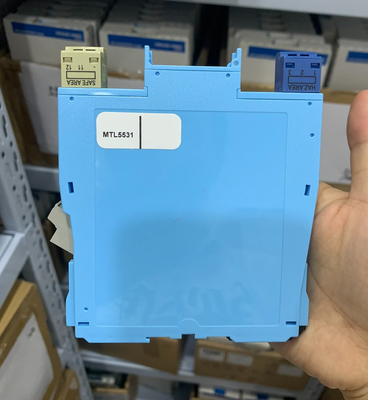

Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms

  • Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms
  • Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms
  • Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms
  • Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms
  • Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms
Место происхождения Великобритания
Фирменное наименование EATON
Номер модели MTL5531
Количество мин заказа 2
Цена USD＄183
Упаковывая детали оригинальная упаковка
Время доставки В наличии
Условия оплаты LC, D/A, D/P, T/T, Western Union
Поставка способности 10 шт.
Подробная информация о продукте
Выделить

EATON MTL5531 safety transmitter

,

original PLC safety transmitter

,

British EATON MTL5531 transmitter
Оставьте сообщение
Характер продукции

General specifications








Product Name
Eaton Crouse-Hinds series MTL5500 vibration transducer interface
Catalog Number
MTL5531
EAN
5056891309789
Product Length/Depth
109.8 mm
Product Height
118.8 mm
Product Width
15.8 mm
Product Weight
150 g



Certifications and compliances






Area classification
Hazardous/Classified Locations
Standards type
IEC
IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 0
EMC
EN61326
Safety Integrity Level According to IEC61508
SIL2





Product specifications










Signal Type
Pulse and vibration
Number of Channels
1
Mounting Method
T-section 35mm DIN rail
Power Dissipation
1.33W
Signal Range
Minimum: -20V, maximum: -0.5V
Transfer Accuracy
<±50mV (DC)
Switching Frequency
-3 dB at 47 kHz (typical)
Galvanic Isolation
250V rms between safe-area circuits and power supply
Type
2- or 3-wir
