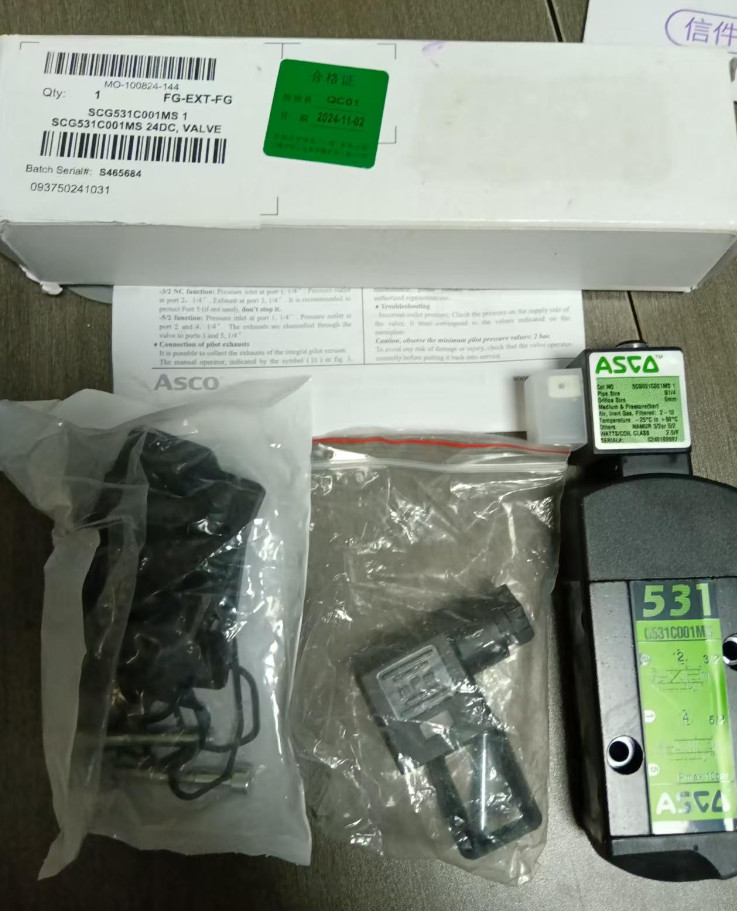

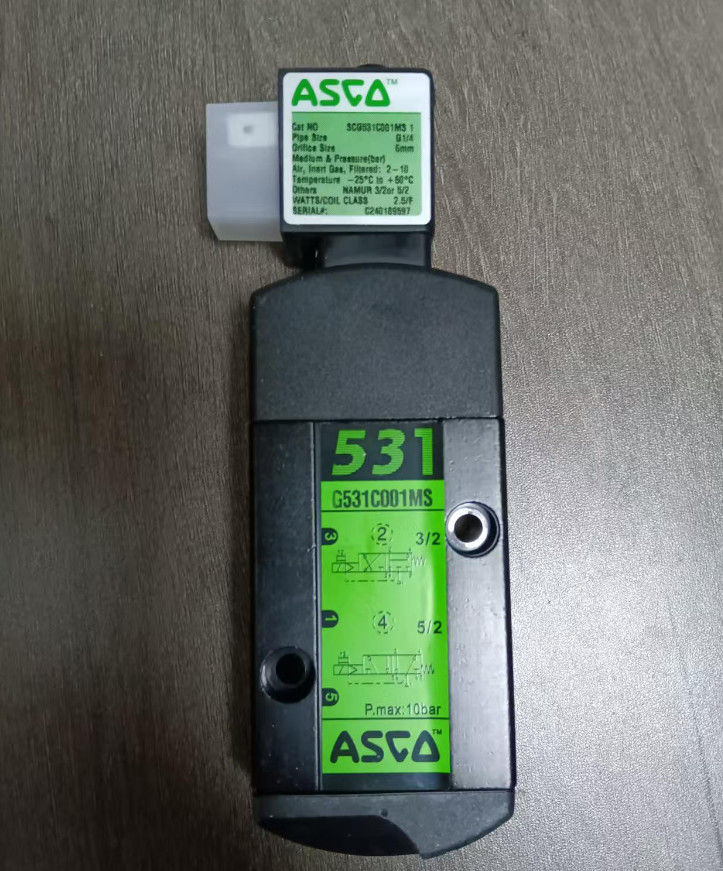

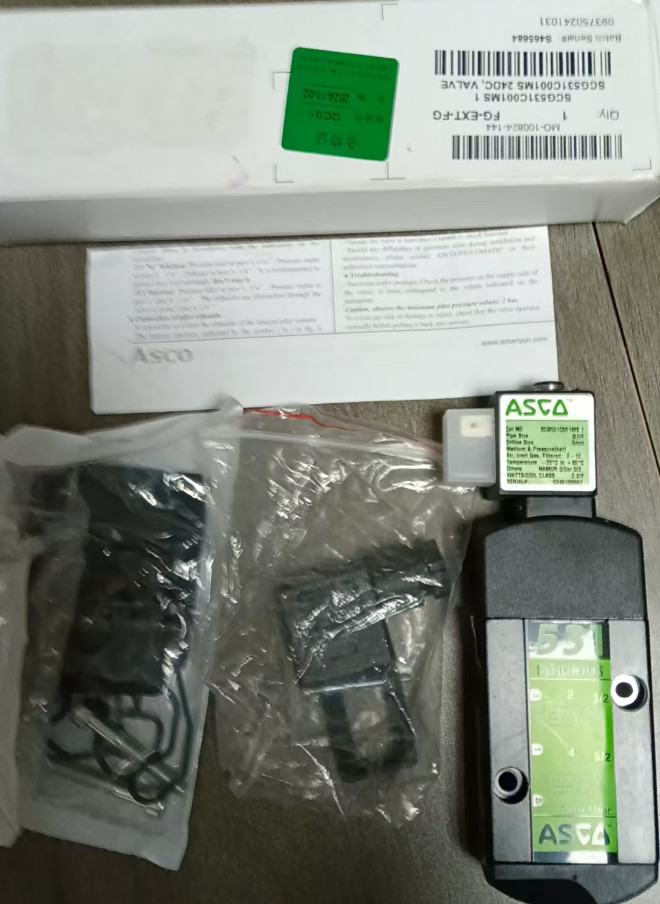

ASCO Explosion-proof Solenoid Valve SCG531C017MS G531C017MS SCG531C018MS SCG531C001MS SCG531C002MS EFG531C017MS EFG531C018MS

  • ASCO Explosion-proof Solenoid Valve SCG531C017MS G531C017MS SCG531C018MS SCG531C001MS SCG531C002MS EFG531C017MS EFG531C018MS
  • ASCO Explosion-proof Solenoid Valve SCG531C017MS G531C017MS SCG531C018MS SCG531C001MS SCG531C002MS EFG531C017MS EFG531C018MS
  • ASCO Explosion-proof Solenoid Valve SCG531C017MS G531C017MS SCG531C018MS SCG531C001MS SCG531C002MS EFG531C017MS EFG531C018MS
  • ASCO Explosion-proof Solenoid Valve SCG531C017MS G531C017MS SCG531C018MS SCG531C001MS SCG531C002MS EFG531C017MS EFG531C018MS
Place of Origin China
Фирменное наименование ASCO
Сертификация -
Model Number SCG531C017MS
Minimum Order Quantity 1
Цена USD35/PC
Packaging Details Original
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Place of Origin zhejiang Warranty 1 YEAR
Selling units Single item Single gross weight 0.500 kg
Оставьте сообщение
Характер продукции

The ASCO Series 531 is a spool type solenoid valve designed to achieve a high level of safety & reliability. With Mix-match of various solenoid it offers ex-proof or none ex-proof solution and allows the support of a wide variety of actuator piloting applications in Chemical and Hybrid Industry



Function
3/2 way and 5/2 way
Pilot
Monostable and Bistable
Connections
G and NPT
IP Rating
IP 66/67
Flow Rate
1100L/min
Port Size
NAMUR and Threaded 1/4"(531)
Material of construction
Aluminum Body with black anodizing
Ex-proof requirements
CCC
Media
Air, Inert Gas
Inlet Pressure
Up to 10 bar
Operated Pressure
2 - 10 bar
Temperature
-25°C to +60°C
Insulation
Default Class F
Power Rating
LP within 2W and BP up to 11WASCO Explosion-proof Solenoid Valve SCG531C017MS G531C017MS SCG531C018MS SCG531C001MS SCG531C002MS EFG531C017MS EFG531C018MS 0ASCO Explosion-proof Solenoid Valve SCG531C017MS G531C017MS SCG531C018MS SCG531C001MS SCG531C002MS EFG531C017MS EFG531C018MS 1ASCO Explosion-proof Solenoid Valve SCG531C017MS G531C017MS SCG531C018MS SCG531C001MS SCG531C002MS EFG531C017MS EFG531C018MS 2ASCO Explosion-proof Solenoid Valve SCG531C017MS G531C017MS SCG531C018MS SCG531C001MS SCG531C002MS EFG531C017MS EFG531C018MS 3
